SharePoint 2010 : Sandbox Solution Part 4 Full Trust Proxy

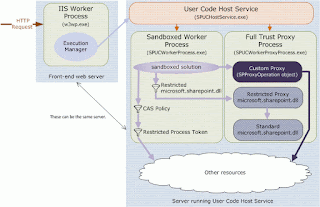

Full Trust Proxy:  Sandboxed solution to execute an action that is ordinarily not available to sandboxed solutions.
One of these techniques is to create a special kind of operation that runs in a full trust process, but that can be called from a sandboxed solution. The operation is deployed as a farm solution by a farm administrator who trusts it and is prepared to let sandboxed solutions call it. These operations are calledfull-trust proxy operations. (Microsoft Definition).

Other words: Full trust proxy is a farm solution that runs Outside the Sandbox Solution. Sandbox Solution uses that assembly and call Execute method to perform the operation which was out the scope of sandbox solution. The class inherits from SPProxyOperation. Full trust Proxy Input parameters used as serialize class (used “Serializable” attribute) that inherits from SPProxyOperationArgs Register proxy with User Code Service during Feature activation. Referenced the assembly in Sandbox solution use it.Steps : Create…

SharePoint 2010 ECMA Scripts code snippets

ECMScript you need to create a client context before you can retrieve data from a SharePoint site.
With ECMAScript you can retrieve the client context from the SharePoint site in which the script runs. Use the Load method to specify which data to load from SharePoint.
Use the asynchronous method executeQueryAsync to retrieve the information from SharePoint. This method needs a reference to a callback method when the execution succeeds and a reference to a callback method when the execution fails.
To Set and Get the Properties there are ways to get the information. get_methodnameset_Methodname example get_web(), set_title etc

Update, Insert, Delete Code snippets

1. Load Site Data

<script type="text/javascript">
var clientContext = null;
var web = null;
ExecuteOrDelayUntilScriptLoaded(Initialize, "sp.js");
function Initialize()
clientContext = new SP.ClientContext.get_current();
web = clientContext.get_web();
clientContext.load(web, 'Title')…

SharePoint 2010 : Sandbox Solution Part 3

Developing Solution in Sandbox Client SideMicrosoft.SharePoint.Client DLLJavaScriptSilver LightWeb PartFull trust proxiesInfoPath FormsMicrosoft Tools For Sandbox SolutionsVisual studio 2010 SharePoint Power Tools that contains visual web part.

Sandboxed-compatible Visual Web Part  This item template enables you to use a visual designer to create SharePoint web parts that can be deployed in a sandboxed solution for SharePoint 2010.

Sandboxed Compilation  This extension displays build errors when you use types or members in a SharePoint 2010 sandboxed project which are not allowed in the SharePoint sandbox environment.
Deploying Pages and Web Part
Steps are: Create  Sandboxed-compatible Visual Web Part deploy as sandbox solution.Create web part page placed sandbox web part on it.Save site as templateTemplate import to new  Import SharePoint Solution Package projectSandboxed-compatible Visual Web Part contained by SPUserCodeWebPartAlternatively, Embed SPuserCodeWebpart in deployed page.O…

SharePoint 2010 : Sandbox Solution Part 2

Sandbox supported DLLS
You can add the Microsoft.SharePoint.DLL C:\Program Files\Common Files\Microsoft Shared\Web Server Extensions\14\UserCode\assemblies\ Microsoft.SharePoint.dll
Sandbox Prohibited Classes and functions

All other SharePont Object Model Assembly except Microsoft.SharePoint.dll. Example you can not add the other SharePoint exmple. Microsoft.Office.Policy.dll, Microsoft.Office.Server.UserProfiles.dll etc. SPSite Constructor SharePoint.WebControl (Can not Access SharePoint Picker Control, CssLink etc) SPSecurity (not run with elevated  privileges).SendEmailCan not assess any DatabaseCan not write to diskcan not load the assembly outside the server except Without AllowPartiallyTrustedCallersAttribute  (Full trust proxy run on the farm.). Most of the user use the sand box don’t have a access to their server.No custom Web servicesNo Talk to any other servers from the server. No Pragmatic workflow deploy in sandbox solution.Sandbox does not support re-direction – no Response.…

SharePoint 2010 : Sandbox Solution Part 1

Sandbox Solution is similar to SharePoint Web Solution Package the difference this solution only deploys at the site collection solution gallery. It is activate by site collection owner. Sandbox Solution you get the restricted subset permission of SharePoint Object Model.  SPUCHostService.exe :  Code runs under special monitored process called  SPUCHostService.exeSPUserCodeWebPart : Web Part that loads the Sandbox Web part Called SPUserCodeWebPart Wrapper.SPUCWorkerProcess.exe : Sandbox run under the worker Process called SPUCWorkerProcess.exe.  This is process you need to Attach for debugging.SPUCWorkerProcessProxy.exe : Communication to the farm under full trust using SPUCWorkerProcessProxy.exe
We need Sandbox solution because: You don’t have a SharePoint Farm Permission but you still want to deploy the custom code in SharePoint this is only way to deploy the custom code in SharePoint.Hosted environment you want to deploy the custom code. Then only way to use sandbox solution to deplo…

SharePoint 2010 Replaceable Parameters, Dynamic Tokens, Dynamic Folder Path

Replaceable Parameters :

Replace the tokens values at the run time or compile time.Information not known at design time.Replaceable parameters used in custom actions, assembly name defined at the top of the custom web part control.

Following are the list of Replaceable Parameters.
$SharePoint.Project.Assembly.FullName$$SharePoint.Feature.ID${ItemId}{ItemUrl} {SiteUrl} {ListId}{RecurrenceId} Working following files that use  Replaceable  Parameters by default. Xml ASCX ASPX WebPart DWP Dynamic Token (Microsoft Definition) ~masterurl This token references a master page from a content page by using the MasterPageFile attribute with the value of the CustomMasterUrl property. The token "~masterurl/custom.master" is replaced at run time by the value in the CustomMasterUrl property, which contains the server-relative full path to the master page, including file name.
Static Tokens (Microsoft Definition) ~site/~sitecollection You can use these tokens to link to a site-relative or site …
